Grille decontamination machine
Wuxi Xinyihai Environmental Protection Technology Co., Ltd. is
located in Yixing city, Jiangsu Province, which enjoys the
reputation of environmental protection city. Our company is mainly
engaged in the technical research and development, manufacturing,
construction, installation, commissioning and other businesses of
water treatment engineering and machinery equipment.
The company mainly produces more than 50 products such as sewage
treatment equipment, dosing equipment, pure water equipment,
circulating water equipment and glass fiber reinforced plastic
products, which are widely used in electric power, coal, chemical
industry, gas, metallurgy, municipal administration, light
industry, electronics, textile and other industries. We have
established long-term good cooperative relations with Baowu Group,
Guodian Group, Jiangsu Guoxin and other companies.

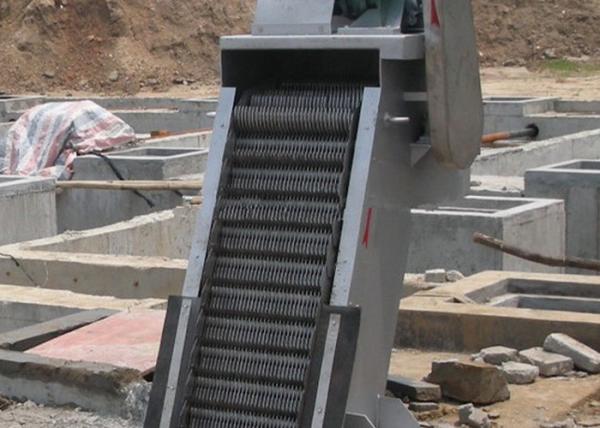

The grille decontamination machine is often used at the inlet of
domestic sewage, printing and dyeing wastewater, papermaking
wastewater, and food wastewater treatment stations to intercept
solid materials such as domestic garbage and large suspended solids
in the water to prevent the blockage of the pump and subsequent
treatment equipment and increase Follow-up processing load, etc.
The grille decontamination machine is assembled by the trash rack
and the cleaning machine. Based on the trash rack, the cleaning
hallow teeth is driven by a rotating chain around the trash rack to
bring the pollutants intercepted by the trash rack to the trolley
for cleaning.
Theroy
Parameters
Model |
Channel width |
Hallow teeth speed (m/min) |
Space between bars(mm) |
Equipment net width(mm) |
Discharging slag height(mm) |
Installation angle |
Power |
| XGH-800 | 800 | 5 | 15/20 | 710 | 750/1000 | 75° | 0.55 |
| XGH-1000 | 1000 | 25/30 | 910 | | 0.55 |
| XGH-1200 | 1200 | 35/40 | 1110 | | 0.75 |
| XGH-1500 | 1500 | 45/50 | 1410 | | 1.1 |
| XGH-1800 | 1800 | 55/60 | 1710 | | 1.5 |
| XGH-2000 | 2000 | 65/70 | 1910 | | 2.2 |
| XGH-2200 | 2200 | 75/80 | 2110 | | 2.2 |
