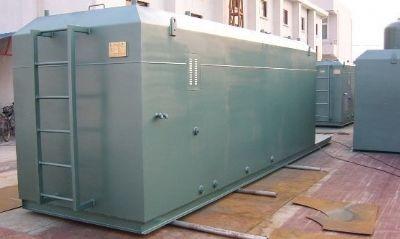

125ton/H Compact Wastewater Treatment System , 304SS Small Domestic Sewage Treatment Plant

    Buy cheap 125ton/H Compact Wastewater Treatment System , 304SS Small Domestic Sewage Treatment Plant from wholesalers

    Buy cheap 125ton/H Compact Wastewater Treatment System , 304SS Small Domestic Sewage Treatment Plant from wholesalers
    • Buy cheap 125ton/H Compact Wastewater Treatment System , 304SS Small Domestic Sewage Treatment Plant from wholesalers
    • Buy cheap 125ton/H Compact Wastewater Treatment System , 304SS Small Domestic Sewage Treatment Plant from wholesalers

    125ton/H Compact Wastewater Treatment System , 304SS Small Domestic Sewage Treatment Plant

    Ask Lasest Price
    Brand Name : SINOPRS
    Model Number : FS
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 20 sets per month
    Delivery Time : 30 working days after contract signed
    • Product Details
    • Company Profile

    125ton/H Compact Wastewater Treatment System , 304SS Small Domestic Sewage Treatment Plant

    Compact Wastewater Treatment System


    The coagulation area of this series of water purifiers adopts a star-shaped mixed reaction process. The precipitation area adopts a double-layer differential flow inclined pipe structure. The filtration area adopts a combined backwashing method of external gas and water, which is very suitable for complex water quality conditions. Coupled with automatic dosing device and disinfection equipment, it can become a water purification station (factory) with a full set of functions.

    This series of water purification devices not only have a wide range of applications, good treatment effects, and excellent effluent quality, but also have small self-consumption, low power consumption and small footprint. It saves water, electricity and labor, and can completely replace traditional small and medium-sized water plant equipment.


    Inlet water pressure

    ≥0.1Mpa

    Design surface load of sedimentation zone

    5~8m³/m2.h

    Applicable raw water temperature

    5~40℃

    Design filter speed of filter area

    8~10m/h

    进水悬浮物含量限值

    Suspended substance content limit of inlet water

    ≤3000mg/L

    Filter washing intensity (water washing)

    10~15L/m2.s(T≈5min, 可调)

    10~15L/m2.s(T≈5min, adjustable)

    净水出水悬浮物含量

    Suspended substance content in purified outlet water

    ≤3mg/L

    滤池冲洗强度(气洗)

    Filter washing intensity (air washing)

    10~15L/m2.s(T≈5min, 可调)

    10~15L/m2.s(T≈5min, adjustable)

    总停留时间

    Total retention time

    60~70min

    滤料(石英砂)

    Filter material (quartz sand)

    粒径0.6-1.2mm,堆厚1000-1400mm

    Particle size 0.6-1.2mm, pile thick 1000-1400mm


    List of corollary equipment

    Model

    Water production (t/h)

    Water production

    Inlet pipe (mm)

    Inlet water pipe


    Water production pipe (mm)

    Produced water pipe

    Drain pipe (mm)

    Water discharge pipe


    Mud discharge pipe (mm)

    Sludge discharge pipe

    Pump (inlet)

    Pump

    (feed water)

    Pump power (KW)

    Pump power

    Equipment weight

    Equipment weight

    Running weight

    Operating weight

    FS-1010DN50DN80DN200DN150IS50-32-125A2.2727
    FS-3030DN80DN125DN200DN150IS80-65-125A5.51272
    FS-5050DN125DN150DN250DN150IS80-65-125A5.521121
    FS-100100DN150DN200DN300DN150IS150-125-250C1142242
    FS-125125DN150DN200DN300DN150IS150-125-200B1552277
    FS-150150DN200DN250DN350DN150IS150-125-200A1578328
    FS-2002002×DN1502×DN200DN300DN150IS200-200-250C22104508
    FS-3003002×DN2002×DN250DN350DN150IS150-125-20 0C22156712

    1. The direction of the inlets of the various pipelines can be changed by 180 degrees to meet the needs of the overall layout.

    2. Pump type selection and motor power are only reference values (H≤15m), and the required operating parameters should be determined according to the actual engineering conditions on site.
